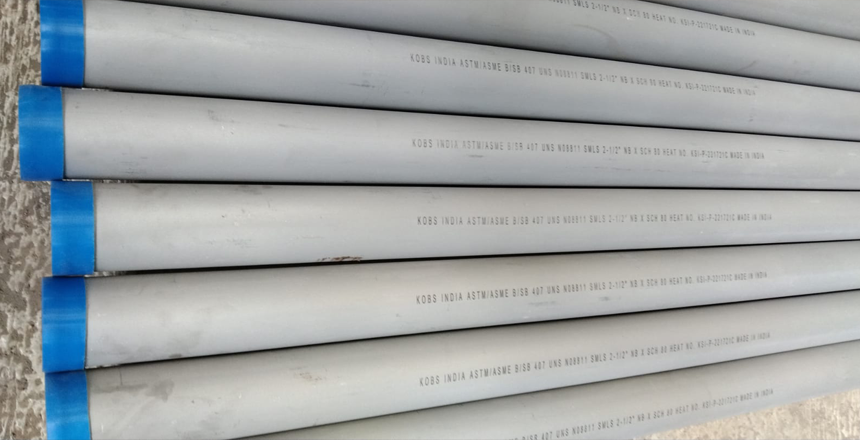

INCOLOY 800HT PIPES TUBES

INCOLOY® 800HT / NICKEL ALLOY 800HT / UNS N08811

Chemical Composition: (%)

Ni: 30~35
Cr:19~23
Fe: 39.5~46
Co:2 max.
Mn: 1.5 max.
Al:0.25~0.6 max.
Ti:0.25~0.6 max.
Si:1 max.
C:0.06~0.1 max.
Cu:0.75 max.
S:0.015 max.

Mechanical Properties

-Tensile Strength: (MPa) = 450 MPa min.
-Yield Strength: (MPa) = 170 MPa min.
-Elongation (%) = 30% min.
-Hardness: (HB) = 125 max.

Grade: (Equivalent / Renowned As)

-Alloy 800HT
-WNr DIN EN 1.4959
-UNS N08811
-DIN EN X8NiCrAlTi32-21

Standard (ASTM):

Seamless Pipes -B407
Seamless Tubes -B407, B163

Standard (ASME):

Seamless Pipes -SB 407
Seamless Tubes -SB 407, SB 163

For detailed information, please contact info@kobsindiapipe.com
